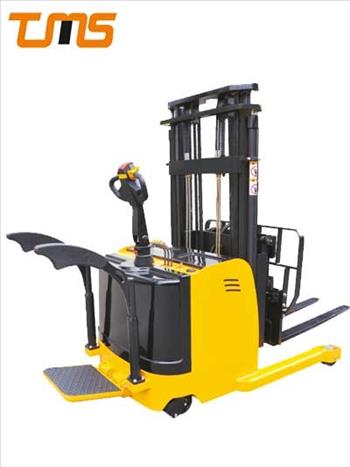

Rich stacker model CQDH15A-I

___________________________
Capacity: 1500 Kg

Model :

CQDH

Configuration No :

15A-I

Type :

Mast type :

Load capacity(kg) :

Load center(mm) :

500

Wheel base(mm) :

Operating type :

Wheels type :

Wheel quantity/Driving wheel/Balance wheel/Bearing wheel :

Reach distance(mm) :

Standard lift height(mm) :

2500/3000/3500/4000/4500/5000/5500

Max extended height(mm) :

3381/3881/4381/4881/5381/5881/6381

Mast lowered height(mm) :

1869/2119/2369/2619/2179/2341/2499

Lowered fork height(mm) :

Fork size(lenght/width/tickness)(mm) :

35/100/1070

Overal lenght(mm) :

Overall width(mm) :

1200-1300/950

Outside width between forks(mm) :

Tilt of fork(F/B)(mm) :

min tuning radius(mm) :

1613/1647

Min Aisle width for pallets 800×1200(mm) :

2806/2830

Min Aisle width for pallets 1000×1200(mm) :

2742/2767

min ground clearance(mm) :

Travel speed,laden/unladed(km/h) :

4.8/5

Lift speed,laden/unladen(mm/time) :

0.095/0.12

Lowering speed,laden/unladen(mm/s) :

0.2/0.15

Gradeability,laden/unladed(%) :

Drive motor(kW) :

Lift motor(kW) :

Steering motor(kW) :

Battery voltage(V) :

Battery Capacity(Ah) :

320

Brake :

Electromagnetic

Controller :

Battery weight(kg) :

285

Service weight(with battery)(kg) :

2250/2300/2350/2350/2500/2550/2600

Distance Shift fork Side(mm) :
