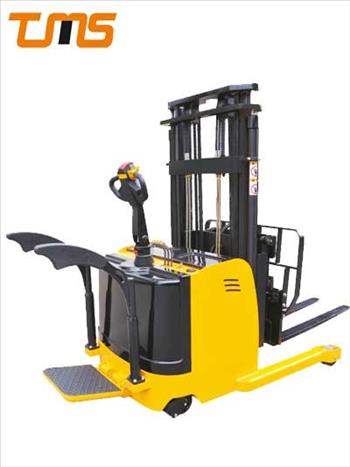

Rich stacker model CQDH12A-I

___________________________
Capacity: 1250 Kg

Model :

CQDH

Configuration No :

12A-I

Type :

Mast type :

Load capacity(kg) :

Load center(mm) :

500

Wheel base(mm) :

Operating type :

Wheels type :

Wheel quantity/Driving wheel/Balance wheel/Bearing wheel :

Reach distance(mm) :

Standard lift height(mm) :

2500/3000/3500/4000/4500/5000/5500

Max extended height(mm) :

3381/3881/4381/4881/5381/5881/6381

Mast lowered height(mm) :

1853/2103/2353/2603/2163/2323/2483

Lowered fork height(mm) :

Fork size(lenght/width/tickness)(mm) :

35/100/1070

Overal lenght(mm) :

Overall width(mm) :

1166-1266/950

Outside width between forks(mm) :

Tilt of fork(F/B)(mm) :

min tuning radius(mm) :

1658

Min Aisle width for pallets 800×1200(mm) :

2783/2794

Min Aisle width for pallets 1000×1200(mm) :

2731/2740

min ground clearance(mm) :

Travel speed,laden/unladed(km/h) :

4.5/5/4.8/5

Lift speed,laden/unladen(mm/time) :

0.12/0.15

Lowering speed,laden/unladen(mm/s) :

0.27/0.2

Gradeability,laden/unladed(%) :

Drive motor(kW) :

Lift motor(kW) :

Steering motor(kW) :

Battery voltage(V) :

Battery Capacity(Ah) :

320

Brake :

Electromagnetic

Controller :

Battery weight(kg) :

285

Service weight(with battery)(kg) :

1800/1850/1900/1900/1950/2000/2050

Distance Shift fork Side(mm) :
