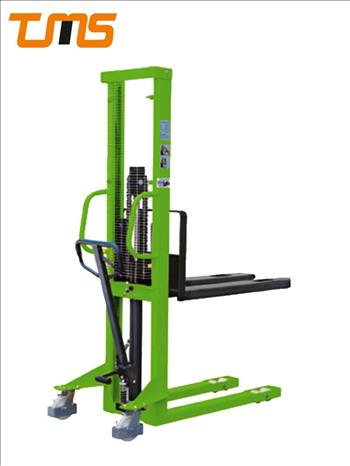

Manual stacker SDJ1000 model with 1000 kg capacity

Manuak stacker 1000 kg
کد کالا :
وضعیت : موجود نمی باشد



Load capacity/rated load(kg) :
1000

Load centre distance(mm) :
600

Fork height,lowered(mm) :
90

Height,mast lowered(mm) :
2080

Max.lift height(mm) :
1600

Height,mast extended(mm) :
2080

Overall lenght(mm) :
1655/1705

Overall width(mm) :
755

Fork dimensions(mm) :
61/170/1100(1150)

Width Overall forks(mm) :
550

Ground clearance,laden,below mast(mm) :
25

Aisle width for pallets 1000×1200 crossways(mm) :
2112

Aisle width for pallets 800×1200 lengthways(mm) :
1945

Turning radius(mm) :
1380

Lift speed,laden/unladen(mm/time) :
25

Lowering speed,laden/unladen(mm/s) :
Manual control

Service weight(kg) :
214
