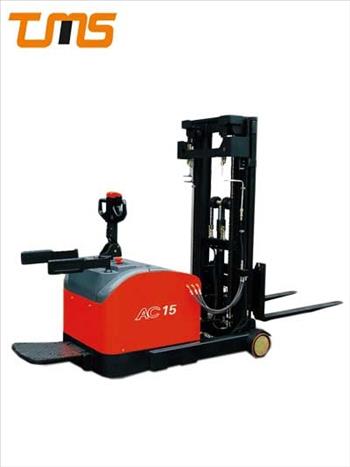

Rich stacker model RSB12/15-810

___________________________
Capacity: 1200/1500 Kg
کد کالا :
وضعیت : موجود نمی باشد



Model :
RSB12/15

Configuration No :
810

Type :
Reach

Mast type :
Two-stage standard

Load capacity(kg) :

Load center(mm) :
500

Wheel base(mm) :
1332

Operating type :
Stand on

Wheels type :
PU

Wheel quantity/Driving wheel/Balance wheel/Bearing wheel :
1/0/2

Reach distance(mm) :
0-425

Standard lift height(mm) :
1400/2000/2500/3000/3300/3600/4000

Max extended height(mm) :
2235/2835/3335/3835/4135/4435/4835

Mast lowered height(mm) :
1490/1790/2040/2290/2440/2590/2790

Lowered fork height(mm) :
55

Fork size(lenght/width/tickness)(mm) :
1070/100/40

Overal lenght(mm) :
2440/2896

Overall width(mm) :
1083

Outside width between forks(mm) :
200-755

Tilt of fork(F/B)(mm) :
3/5

min tuning radius(mm) :
1596/2040

Min Aisle width for pallets 800×1200(mm) :
2620/3050

Min Aisle width for pallets 1000×1200(mm) :
2645/3075

min ground clearance(mm) :
60

Travel speed,laden/unladed(km/h) :
5.5/5

Lift speed,laden/unladen(mm/time) :
180/130

Lowering speed,laden/unladen(mm/s) :
180/100

Gradeability,laden/unladed(%) :
5/3

Drive motor(kW) :
AC1.5

Lift motor(kW) :
DC0.3

Steering motor(kW) :
DC0.15

Battery voltage(V) :
24

Battery Capacity(Ah) :
280

Brake :
Electromagnetic/regenerative

Controller :
Curtis

Battery weight(kg) :
235

Service weight(with battery)(kg) :
2100

Distance Shift fork Side(mm) :
